Rate-Related Wenckebach Phenomenon: A Deep Dive into AV Nodal Physiology and Decremental Conduction

Introduction

Wenckebach phenomenon, or Mobitz Type I second-degree AV block, is traditionally taught as a benign and often physiologic conduction delay within the atrioventricular (AV) node. However, one variant that frequently evades recognition in clinical practice is the rate-related Wenckebach phenomenon, particularly in the setting of atrial tachycardia. Understanding this phenomenon requires a thorough appreciation of AV nodal anatomy, its unique electrophysiologic properties—particularly decremental conduction—and how these manifest on ECG when atrial rates accelerate beyond the node's conduction capacity.

The AV Node: A Specialized Conduction System with Bottleneck Properties

The AV node occupies a unique position at the crossroads of atrial and ventricular conduction. Unlike the His-Purkinje system, which is fast and all-or-none, the AV node exhibits slow, decremental conduction and is highly modifiable by autonomic tone. Its primary roles are to:

1. Delay conduction to allow ventricular filling.

2. Protect the ventricles from excessively rapid atrial rates.

The node is composed of transitional, compact, and lower nodal cells, each with progressively slower conduction velocities. This structural organization underlies the graded slowing of conduction seen in Wenckebach.

Decremental Conduction: The Physiology Behind the Phenomenon

Decremental conduction refers to the property whereby faster incoming impulses are conducted more slowly through the AV node. Unlike most excitable tissues, which conduct faster with more frequent stimulation, the AV node becomes progressively fatigued. The mechanism involves:

• Calcium channel-dependent action potentials: AV nodal cells lack fast sodium channels and rely on slower L-type calcium currents, which are more sensitive to inactivation during rapid firing.

• Progressive prolongation of refractory periods: As the atrial rate increases, less time is available for calcium channels to recover, leading to increased AV nodal delay.

• Eventual dropped conduction: When the refractory period exceeds the incoming interval, one atrial impulse fails to conduct—creating the characteristic Wenckebach pause.

This progressive delay and dropped beat manifest as group beating on ECG.

Rate-Related Wenckebach: Clinical and ECG Features

Rate-related Wenckebach emerges when the atrial rate increases—often due to atrial tachycardia—and the AV node cannot maintain 1:1 conduction.

Key ECG Features:

• Progressive PR prolongation with each successive beat.

• Group beating: A pattern of conducted beats followed by a non-conducted P wave.

• Shortening RR intervals before the pause, then a long pause resets the cycle.

• Often concealed within faster rhythms, requiring careful inspection of P-to-P and R-to-R intervals.

This is distinct from fixed AV blocks, where the conduction ratio remains constant regardless of rate.

Common Clinical Scenarios:

• Atrial tachycardia or flutter with variable conduction.

• Digoxin effect: Due to its vagotonic properties, digoxin enhances AV nodal decremental properties.

• Increased vagal tone or post-MI AV nodal ischemia, which can exaggerate decremental conduction.

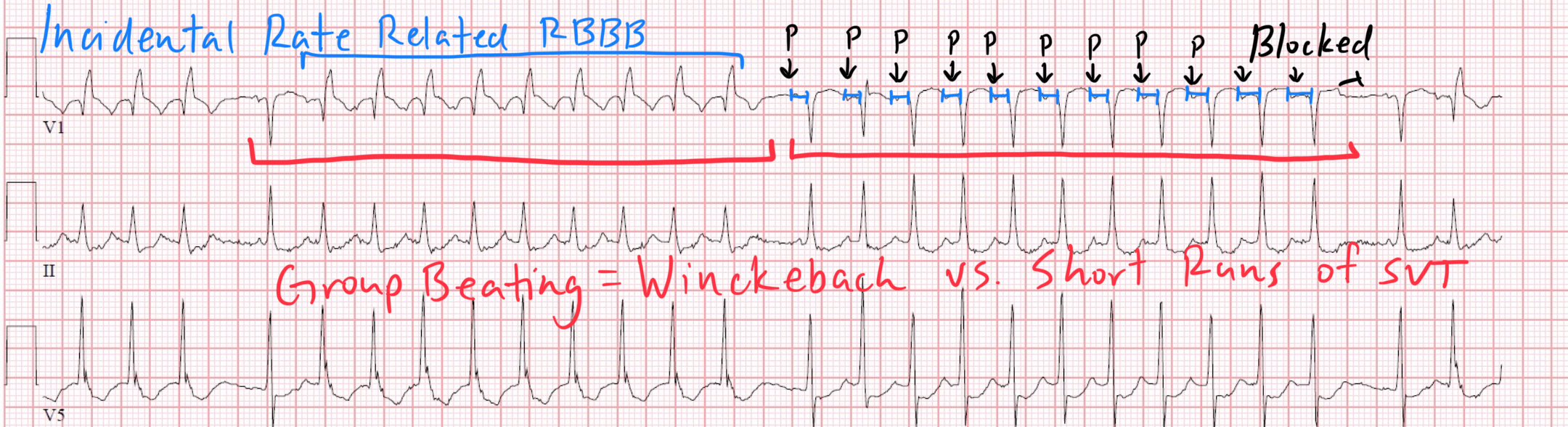

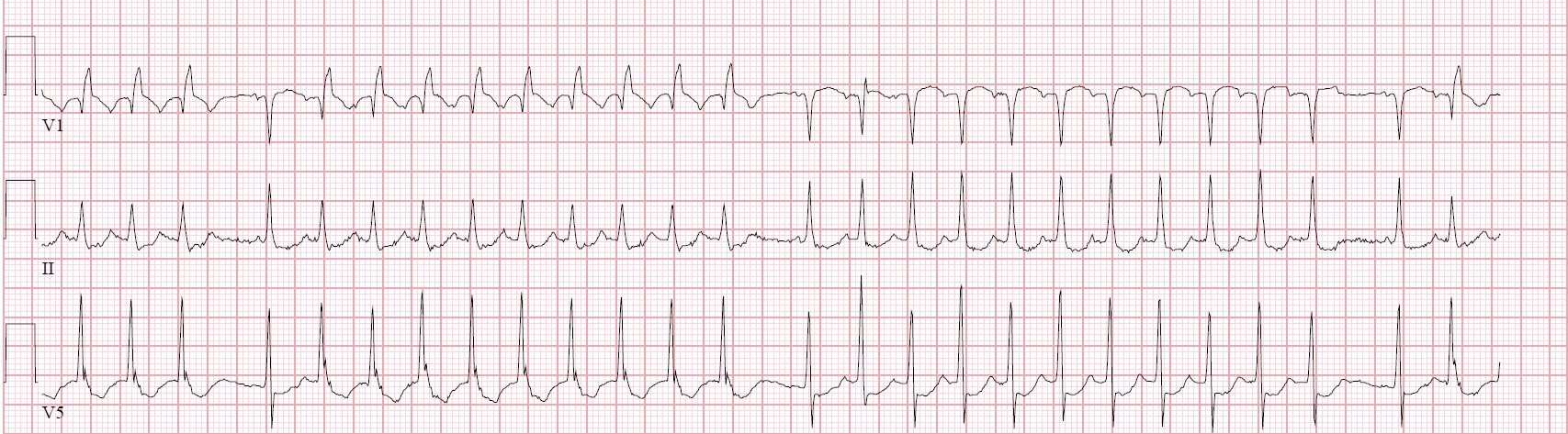

In this example, notice there are groups of tachycardia. Between each is a short pause. When we see group beating, we must evaluate for Rate Related Wenckebach versus a short run of SVT. In this case, we see atrial activity preceding every QRS complex. Notice PR interval prolongation that is subtle until we see a dropped beat. This leads to the group beating phenomenon, and is a function of AV Nodal decremental conduction.

Physiological Significance

Rate-related Wenckebach is generally benign when isolated and often a protective mechanism against rapid ventricular response. In the setting of atrial tachycardia, it reflects the AV node's attempt to buffer the ventricles from a storm of atrial impulses.

Take-Home Points

• The AV node’s decremental conduction allows it to function as a physiologic filter, especially under conditions of increased atrial rate.

• Rate-related Wenckebach is a manifestation of this property and often occurs in the setting of atrial tachycardia.

• On ECG, look for progressive PR interval prolongation followed by a dropped beat and group beating patterns.

• It is usually transient and benign, but understanding it is essential for proper diagnosis and avoiding unnecessary pacemaker implantation or AV nodal suppression.

• Treatment is directed at the atrial tachyarrhythmia, not the AV node.
